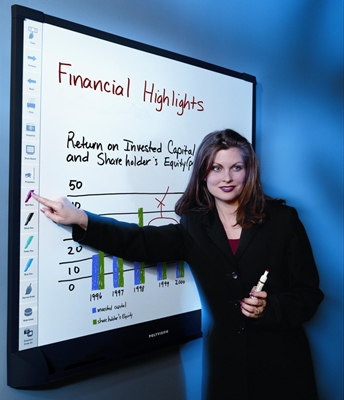

TS400 Interactive White Board [TS400]

The Webster TS Series of interactive whiteboards instantly captures everything written or drawn on its surface. Transform your meeting or classroom into a more productive environment by allowing participants to listen and participate instead of taking notes. At the end of the session, save your notes to a computer so you can print, e-mail, fax, or upload them to the Web.

The TS series' interactive projection surface enables users to control a linked Macintosh or PC from the whiteboard, further enhancing the session's productivity.

The four, eight, or sixteen point calibration process and icon strip located on the board make the system easy to set up and operate. When used in conjunction with teleconferencing products, you can simultaneously broadcast whiteboard displays to remote participants in real time.

Ideal for classrooms and business education environments, Webster TS Series is an economical, interactive visual communication solution.

FEATURES

BENEFITS
Touch-sensitive surface   Easy to use
  Uses standard dry erase markers
Interactive projection enabled   Allows user to control presentation from the board
  Enhances presentation impact
Electronically captures written information   Improves audience participation and enhances comprehensive learning
  Eliminates post-meeting transcription
  Enables electronic communication of information

SPECIFICATIONS

TS 400
Writing Surface Size 1140 mm (45.0") Wide
889 mm (35.0") High
Overall Size 1190 mm (47.0") Wide
1010 mm (39.6") High
76,2 mm (3.0") Deep
Weight 13,62 kg (30 lbs.)
Resolution 8000 x 8000

FEATURE AND TECHNICAL INFORMATION

TS 400
Minimum computer requirements Windows®
  Pentium processor recommended
  32 MB RAM recommended
  Windows 98, NT, 2000, ME, XP
  Microsoft Windows compatible printer recommended
  One available serial port with 9- D-type male connector
Apple Macintosh®
  PowerBook®, G3, G4, iBook®, iMacTM, eMacTM
  32 MB available RAM
  Available serial port or use optional USB to 9-pin serial adapter
  System software Version 8, 9, or X
  Macintosh compatible printer recommended
Communications Communication speed 192 points/sec, 9600 band
Export formats Windows
  JPEG (.jpg)
  Bitmap (.bmp)
  TIFF (.tif )
  Metafile (.wmf )
  HTML (.htm)
  Acrobat (.pdf)
Macintosh
  JPEG (.jpg)
  PICT (.pct)
  Bitmap (.bmp)
  TIFF (.tif )
  MacPaint
  PhotoShop (.psd)
  PNG (.png)
  QuickTime Image
  Targa (.tga)
  Acrobat (.pdf )
Software   Transfer images via drag & drop, clipboard, or file export

Supports most Windows compatible printers and video cards
Pen, eraser, and surface specifications   Touch sensitive, low-glare, stain-resistant Mylar surface

Standard dry erase markers provided in black, red, blue, and green

830 mm (3.25") round eraser provided
Electrical requirements DC supply 5W (max), supplied with product
Signal interface   RS-232, 9-pin female D-sub connector on the board

3600 mm (12') serial cable provided (6100 mm(20')
for TS 600 and TS 800) 9-pin female to 9-pin male

Optional USB to 9-pin adapter available
Certifications CE
