• 22 FPS Live Progressive Display Without Flickering
• Capture and Playback Up to 64 Pictures
• Camera Head Rotation -90 ~ +90 Degree
• Hot Key Step Zoom Function for Variant Shooting Size
• Built-in CF Card Slot for Portable Storage
• Best Image Quality by DVI Output
• Seamless Switch Between Switching Signal Sources
• Split Screen for Side by Side Image Display
• Optional 3.5" LCD Monitor to Monitor Your Objects
• Built-in Ethernet Port for Remote Control
Key Features
22 fps Live Progressive Video Output

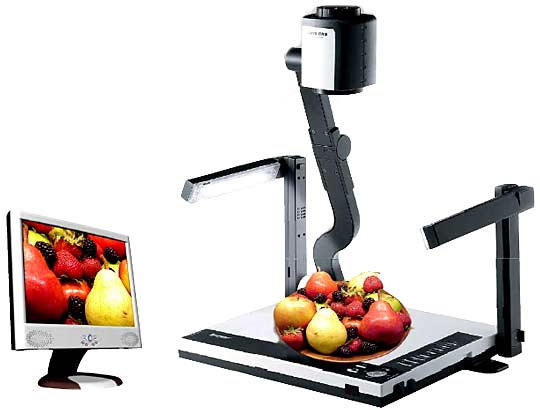

The PS600 is equipped with a high-speed ASIC chip to captures images at 22 frames per second. With this high frame rate ASIC, user can enjoys a real-time live image output without flickering.
Seamless Switch Between PC and Camera
The PS600 has a built-in seamless video switches which enable seamless video source switching between live video from the presenter and the computer.
No Hot Spot
The PS600 is equipped with a pair of flexible lamps, which can be rotated to multiple angles to avoid potential hot spots and shadows caused by any fixed external illumination.
Split Screen for Side by Side Image Display
The PS600 can displays live captures and the image from Build-in memory from earlier captures at the same time for side-by-side comparison.
Built-in CF Card Reader/Writer
Beside the build-in 64 pages memory, PS600 also offers a CF memory card reader/writer for your unlimited expansion need.
Built-in Ethernet port for remote control
The PS600 is equipped with an Ethernet LAN port , You can remote control PS600 through Ethernet connection.
Up to 64 Images Storage
Built-in function can captures and stored up to 64 images internally . And play back as a slide show.
User Friendly Interface
1. Localized User Guide
Button functions described by local language on the front panel
2. Camera Head Rotation
Rotate the document image by turning the mechanical camera
3. Camera Hand Swing
If the desired objects cannot be placed on platform, users can swing the camera head 180 degree, front to rear, to capture objects.
4. Unobstructed Station
Unobstructed platform allows large object to be placed on the performs for capture.
5. Easy to Use Key Pad
Simple keypad on the stage allows user for easy operation
6. Key Lock
Lock the advanced functions from unaware press.
7. CF Card Reader With built-in CF card reader/writer to support Optional CF Card Type II storage. Image captured is in JPG format.
8. Wireless Remote Control
The wireless remote control with built-in storage compartment gives complete control of the PS600
9. PS2 Mouse Connection
Through a PS/2 mouse connection, the user can easily control the mouse curser over images to annotate and highlight the objects.
10. Optional LCD Monitor
The optional LCD monitor allows the presenter to preview the staging area.
PS600 Specifications
Pick-up Device
1/3" progress scan CCD
Total Pixels
850K
Effective Pixels
800K
Frame Rate
22 frames/sec.
Freeze
Yes
Exposure
Auto / manual
Analog RGB Output
XGA 75 Hz / 60 Hz SVGA 60 Hz
C-Video Output
NTSC/PAL
Step Zoom
A4, A5
Image Mode
Photo/text/slide/film/gray/microscope
White Balance
Auto/Manual
Built in Storage
64 frames
Portable Storage
CF card
Optics
Head Rotation
90 ~ +90 degree
Shooting Area
350mm x 260 (max.) ; 29mm x 22mm (min.)
Zooming
12X Optical/ 4X Digital Zoom
Focusing
Auto / Manual
Power Source
100-240V
Consumption
15 Watts (Lamp off)/ 30 Watts (Lamp on )
Optional
LCD module
Lighting
Front Lamp Type
Cold Cathode Lamp
Backlight Lamp Type
Cold Cathode Lamp
Backlight
Built - in 5"x 4"

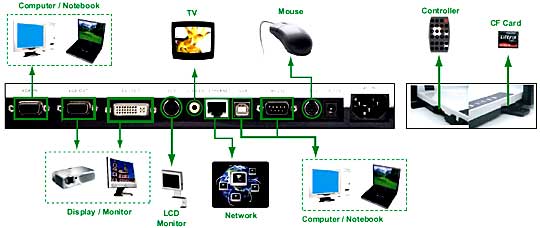

Input
VGA Input
HD-SUB 15 Pins Female
Mouse Port
Standard PS2 Mouse
Ethernet
RJ-45 10/100BaseT
RS232C
D-SUB 9 Pins Male
Output
VGA Output
HD-SUB 15 Pins Female
DVI
DVI-I Digital & Analog Receptacle Connector
Composite Video
RCA Jack
USB
Standard USB Socket (Type B)
DC 12V Output
DC Jack, 750mA
Dimension
Operating
520mm(L) x 350mm(W) x 590mm(H)
Folder
520mm(L) x 350mm(W) x 150mm(H)
Weight
Around 5 Kg
Design and Specifications are subject to change without notice.
